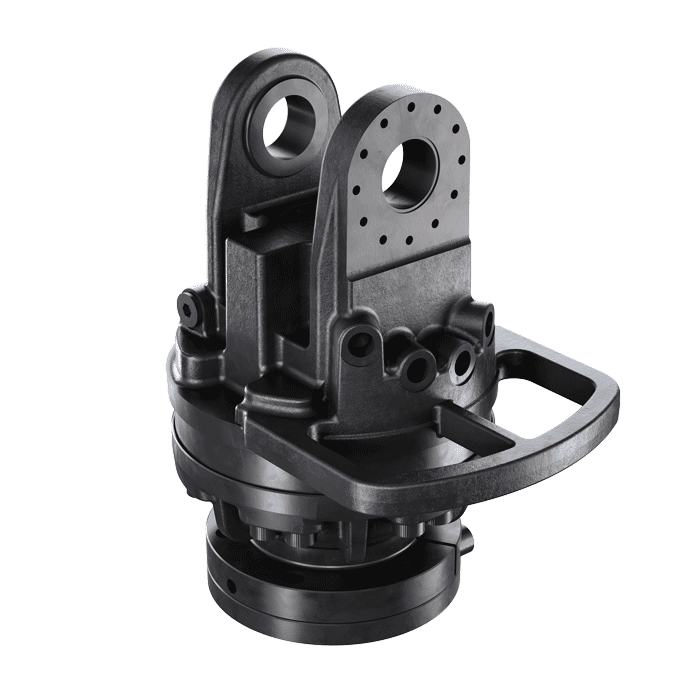

BBR F Series

The radial piston BBR F rotator makes loading efficient in heavy-duty applications. You can trust its capability to do heavy lifting, thanks to its unlimited rotation, excellent load capacity and high torque.

Each and every part in BBR F has been designed for heavy-duty purposes and rotator maintains its power throughout its long service life.

BBR F is the top choice for fast and productive loading, when precision and strength are required.

Features

  • Unlimited rotation
  • Designed to endure the high external loads
  • Constant high torque throughout the turning range
  • Built-in relief valves protect the hydraulic system
  • All-weather sealing for demanding work environments

Downloads

Link to file "Black Bruin Hydraulic Rotators"

Black Bruin Hydraulic Rotators

pdf

Link to file "Black Bruin Rotators Operating Manual"

Black Bruin Rotators Operating Manual

pdf

Technical specifications

Link type

I-100

Axial load capacity (static)

150

kN

Displacement per rotation

788

ccm

Recommended oilflow

20

l/min

Max. rotation speed

30

rpm

Max. torque (25 Mpa)

3000

Nm

Torque per 1 MPa

120

Nm

Total weight

73

kg
