Links and Brakes

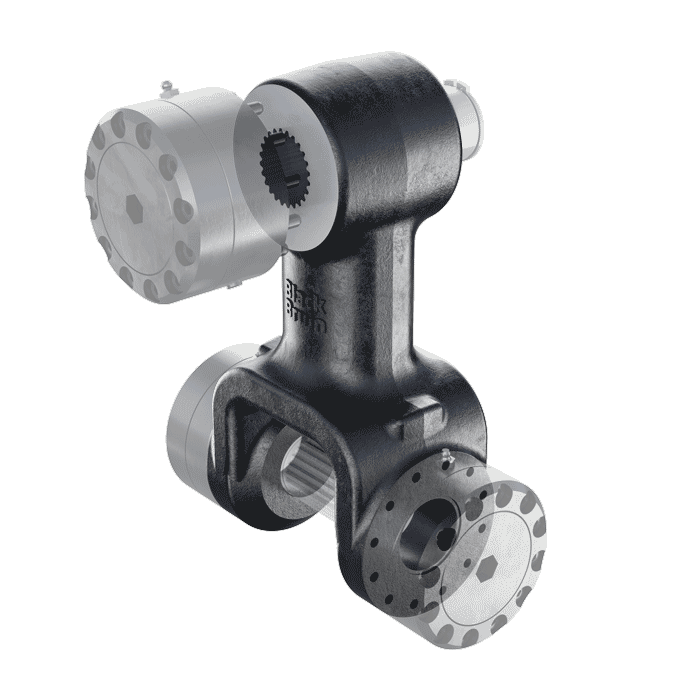

Black Bruin's updated link options include even more durable 240- and 310-millimetre long TR links. The new links enable the use of 0 to 4 brake kits for increased (up to 2200 Nm) and steady braking power in two directions.

The adjustable multi-disc brakes guarantee smooth working by damping the harvester head swinging efficiently. Design is wear-proof, well-protected and easy to service, thus giving the long operational life with constant braking torque.

Features

  • Up to four multi-disc brakes for efficient swing damping
  • Links available without brakes for applications where swing damping is not required
  • Durable brake discs – constant braking force
  • Well-protected and service friendly structure
  • Long maintenance interval

Downloads

Link to file "Black Bruin Hydraulic Rotators"

Black Bruin Hydraulic Rotators

pdf

Link to file "Black Bruin Hydraulic Rotators Operating Manual"

Black Bruin Hydraulic Rotators Operating Manual

pdf

Technical specifications
