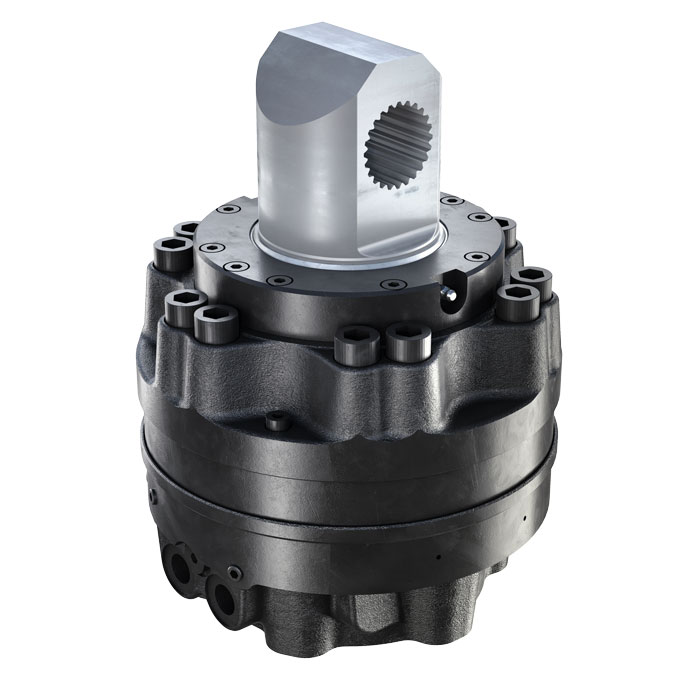

RH3016 harvester rotator

The RH3016 is Black Bruin’s newest rotator that has been designed especially for heavy-duty harvester use. Torque has increased from the previous model’s 3000 Nm to almost 3500 Nm. The RH3016 features even stronger bearing design and a service-friendly all-weather sealing structure.

Features

  • Durable bearing design
  • High torque
  • Easy to service for higher productivity

Downloads

Link to file "Black Bruin Rotators Operating Manual"

Black Bruin Rotators Operating Manual

pdf

Technical specifications

Link type

H-085

Axial load capacity (static)

160

kN

Displacement per rotation

788

ccm

Recommended oilflow

20

l/min

Max. rotation speed

30

rpm

Max. torque (29 Mpa)

3480

Nm

Torque per 1 MPa

120

Nm

Total weight

66

kg
