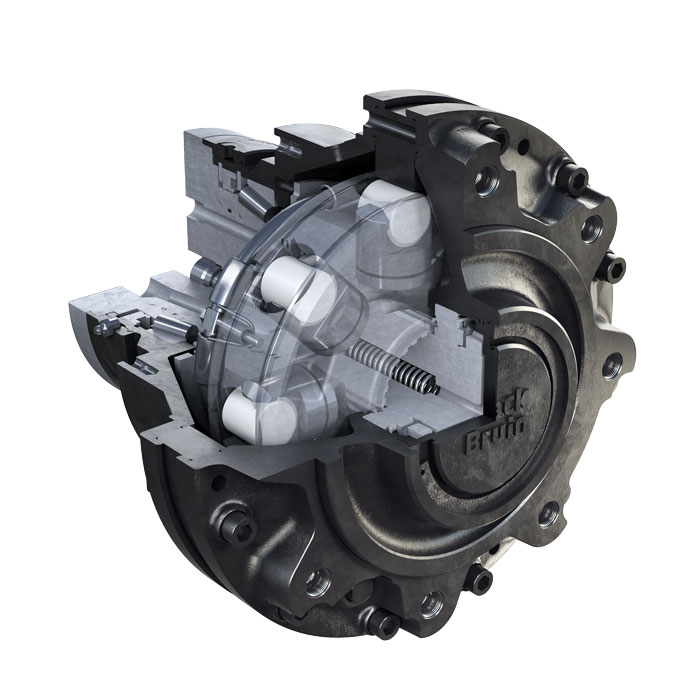

B200-series hydraulic motors

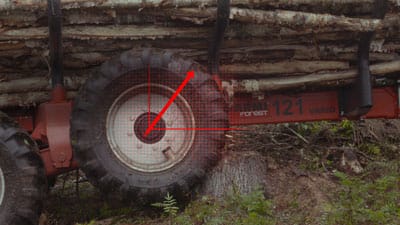

Black Bruin B200 On-Demand Wheel Motors are designed to generate tractive power on tractor-driven trailers and working equipment. Motors are extremely well-suited to agricultural, forestry and earth-moving applications. When the machinery is driven on-road, the motors can be freewheeled securely, since the freewheeling is done without active hydraulics.

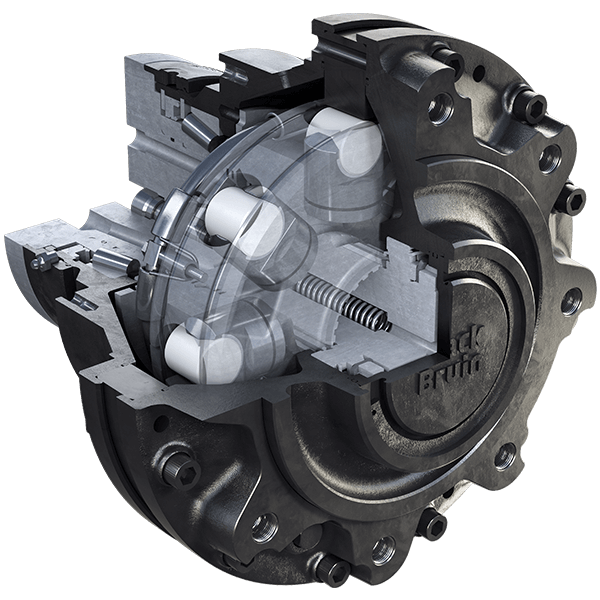

B200-series hydraulic wheel drive by Black Bruin.

Features

  • Unique mechanical freewheeling
  • 1- or 2-speed
  • Well-sealed, compact structure
  • High load carrying capacity

Motor frame size

Performance

Displacement [ccm] 500/630/800
Max. torque with 100 bar [Nm] 796/1000/1270
Max. power [kW] 35
Max. rotating speed at freewheeling [rpm] 600
Max. pressure [bar] 350
Max. flow rate [l/min] 150
Max. load capacity [t] 5
Weight (with drum brake) [kg] 59/96
Brake torque – drum brake [Nm] 8600
Brake torque – disc brake [Nm] 4950

Options

1-speed 100% displacement
In-built 2-speed valve 100 / 50% displacement
In-built freewheeling valve Yes

Brake type

Drum brake MRJ40 320×75
Disc brake Single brake caliper

Accessories

Speed sensor Speed and direction detection

Interface

Wheel hub interface 205 – 6xM18x1,5
Shaft interface 140 – 6xM16x2,0

Technical specifications

Displacement [ccm] 1000/1250/1600
Max. torque with 100 bar [Nm] 1590/1990/2550
Max. power [kW] 50
Max. rotating speed at freewheeling [rpm] 500
Max. pressure [bar] 350
Max. flow rate [l/min] 200
Max. load capacity [t] 6
Weight (with drum brake) [kg] 92/156

Options

1-speed Yes
In-built 2-speed valve Yes
In-built freewheeling valve Yes

Brake type

Drum brake MRJ50 400×80
Disc brake Available

Technical specifications

Displacement [ccm] 2000/2500/3150
Max. torque with 100 bar [Nm] 3180/3980/5010
Max. power [kW] 90
Max. rotating speed at freewheeling [rpm] 400
Max. pressure [bar] 450
Max. flow rate [l/min] 350
Max. load capacity [t] 12
Weight (with drum brake) [kg] 150/262

Options

1-speed Yes
In-built 2-speed valve Yes
In-built freewheeling valve Yes

Brake type

Drum brake MRJ61 420×180
Disc brake Available

Technical specifications

Displacement [ccm] 4000/5000/6300
Max. torque with 100 bar [Nm] 6370/7960/10000
Max. power [kW] 130
Max. rotating speed at freewheeling [rpm] 350
Max. pressure [bar] 450
Max. flow rate [l/min] 500
Max. load capacity [t] 16
Weight [kg] 285

Options

1-speed Yes
In-built 2-speed valve Yes
In-built freewheeling valve n/a

Brake type

Drum brake n/a
Disc brake Interface
