Black Bruin

C200-series

The features of the C200-series motors have been optimized especially for the requirements of hydrostatic transmission on vehicles, but they are also suitable for many other applications. The C200-series covers displacements between 462 and 3150 cm3.

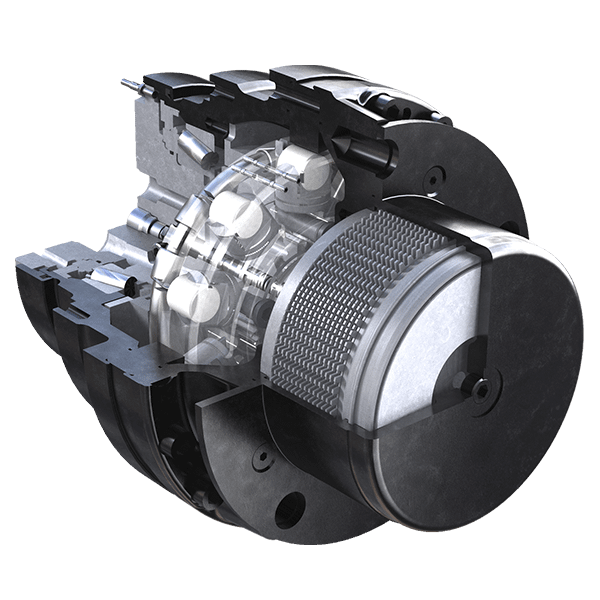

C200-series hydraulic direct drive by Black Bruin.

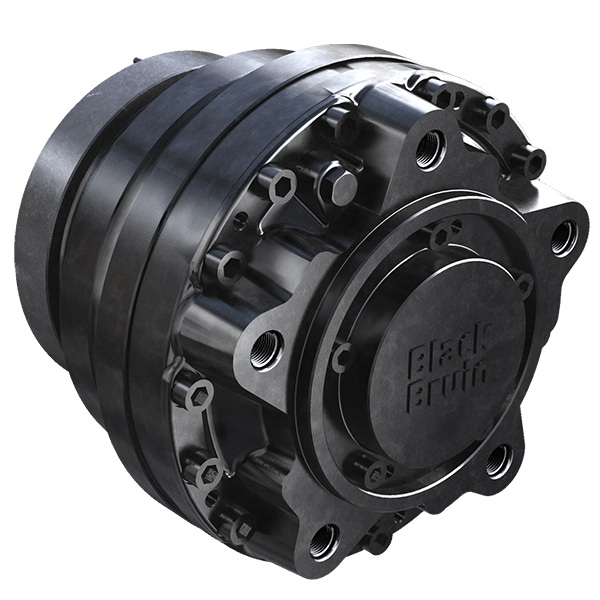

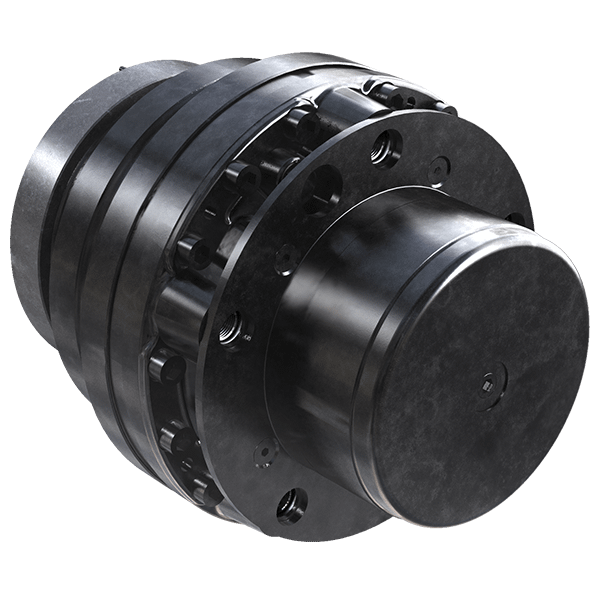

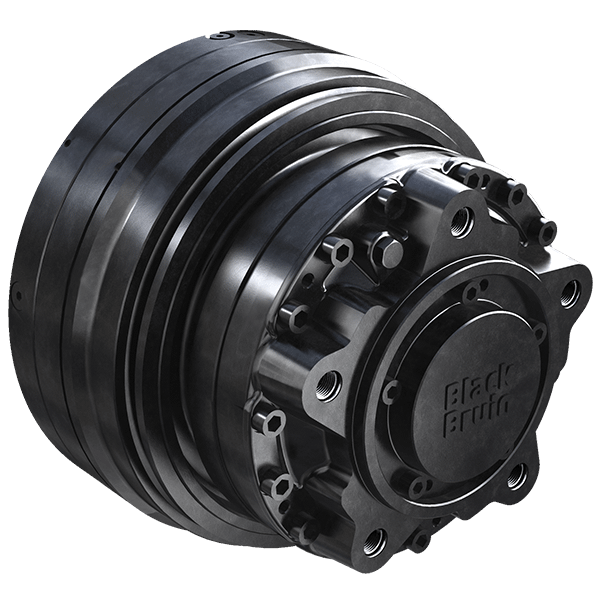

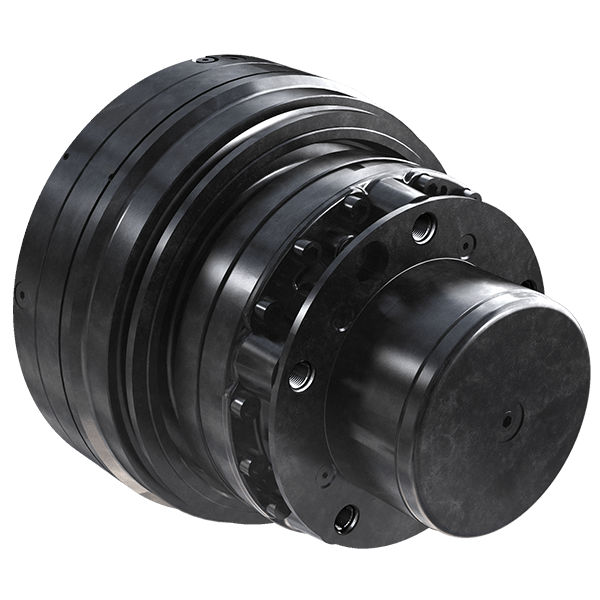

C200-series frames

Technical specifications

Displacement [ccm] 462/513/564/615/667
Max. torque [Nm] 3310/3670/4040/4160/4250
Max. power [kW] 32
Max. rotating speed at freewheeling [rpm] 500
Max. pressure [bar] 450/450/450/425/400
Weight [kg] 46-56
Min. brake torque (parking brake) [Nm] 4300

Options

1-speed Yes
2-speed Yes
4-speed n/a
Mechanical freewheeling n/a
Speed sensor Yes

Brake type

Parking brake (SAHR) Yes
Service brake (HASR) n/a
Disc brake Yes

Technical specifications

Displacement [ccm] 705/783/862/940/1018
Max. torque [Nm] 5050/5610/6170/6360/6480
Max. power [kW] 42
Max. rotating speed at freewheeling [rpm] 450
Max. pressure [bar] 450/450/450/425/400
Weight [kg] 64-122
Min. brake torque (parking brake) [Nm] 6560
Min. brake torque (service brake) [Nm] 7800

Options

1-speed Yes
2-speed Yes
4-speed n/a
Mechanical freewheeling Yes
Speed sensor Yes
Parking brake (SAHR) Yes
Service brake (HASR) Yes
Disc brake

Technical specifications

Displacement [ccm] 90/101/1111/1212/1313
Max. torque [Nm] 6510/7230/7960/8200/8360
Max. power [kW] 50
Max. rotating speed at freewheeling [rpm] 425
Max. pressure [bar] 450/450/450/425/400
Weight [kg] 81-148
Min. brake torque (parking brake) [Nm] 8470
Min. brake torque (service brake) [Nm] 10700

Options

1-speed Yes
2-speed Yes
4-speed n/a
Mechanical freewheeling Yes
Speed sensor
Parking brake (SAHR) Yes
Service brake (HASR) Yes
Disc brake

Technical specifications

Displacement [ccm] 1572/1747/1922/2096/2271
Max. torque [Nm] 11300/12500/13800/14200/14500
Max. power [kW] 72
Max. rotating speed at freewheeling [rpm] 400
Max. pressure [bar] 450/450/450/425/400
Weight [kg] 124-164
Min. brake torque (parking brake) [Nm] 20600

Options

1-speed Yes
2-speed Yes
4-speed Yes
Mechanical freewheeling Yes
Speed sensor
Parking brake (SAHR) Yes
Service brake (HASR) n/a
Disc brake

Technical specifications

Displacement [ccm] 2000/2500/3150
Max. torque [Nm] 14300/17900/22600
Max. power [kW] 90
Max. rotating speed at freewheeling [rpm] 400
Max. pressure [bar] 450
Weight [kg] 157-189
Min. brake torque (parking brake) [Nm] 20600

Options

1-speed Yes
2-speed Yes
4-speed Yes
Mechanical freewheeling Yes
Speed sensor
Parking brake (SAHR) Yes
Service brake (HASR) n/a
Disc brake

Downloads

C200-series product manual

pdf

Language EN DE
