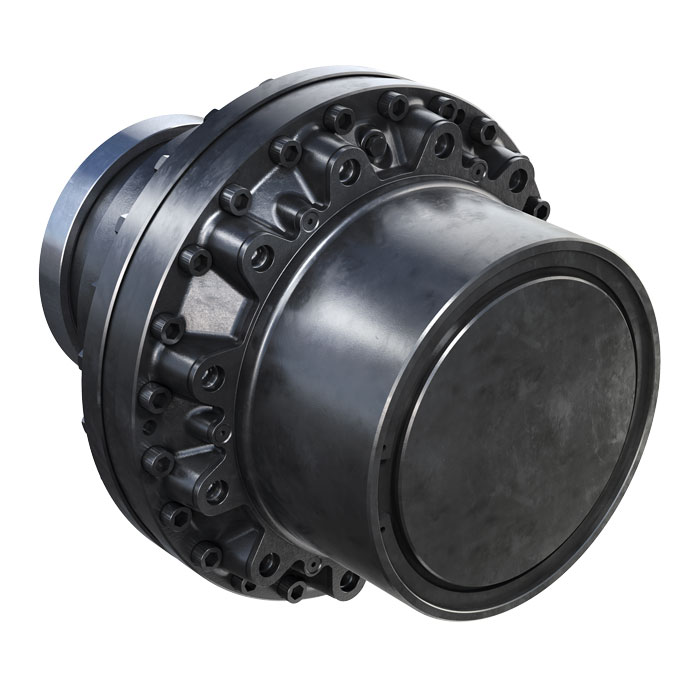

BB-series
Smooth start and excellent low speed characteristics in compact size. Spring operated wet multi-disc brake option. Mechanical freewheeling and flexible engineering. A solid selection for a variety of applications.
BB-series frames
Technical specifications
Displacement
[ccm] 630/800
Max. torque
[Nm] 3300/4190
Max. power
[kW] 35
Max. rotating speed at freewheeling
[rpm] 600
Max. pressure
[bar] 350
Weight
[kg] 66
Min. brake torque (parking brake)
[Nm] 3700
Options
1-speed Yes
2-speed Yes
Mechanical freewheeling Yes
Technical specifications
Displacement
[ccm] 1000/1250/1600
Max. torque
[Nm] 5240/6540/8380
Max. power
[kW] 50
Max. rotating speed at freewheeling
[rpm] 500
Max. pressure
[bar] 350
Weight
[kg] 114
Min. brake torque (parking brake)
[Nm] 8000
Options
1-speed Yes
2-speed Yes
Mechanical freewheeling Yes
Technical specifications
Displacement
[ccm] 2000/2500/3150
Max. torque
[Nm] 13440/16810/21170
Max. power
[kW] 90
Max. rotating speed at freewheeling
[rpm] 400
Max. pressure
[bar] 450
Weight
[kg] 189
Min. brake torque (parking brake)
[Nm] 20000
Options
1-speed Yes
2-speed Yes
Mechanical freewheeling Yes
Technical specifications
Displacement
[ccm] 4000/5000/6300
Max. torque
[Nm] 26890/33530/42300
Max. power
[kW] 130
Max. rotating speed at freewheeling
[rpm] 350
Max. pressure
[bar] 450
Weight
[kg] 365
Min. brake torque (parking brake)
[Nm] 40000
Options
1-speed Yes
2-speed Yes
Mechanical freewheeling Yes
Technical specifications
Displacement
[ccm] 10000/12600
Max. torque
[Nm] 45200/45120
Max. power
[kW] 189
Max. rotating speed at freewheeling
[rpm] 350
Max. pressure
[bar] 284/225
Weight
[kg] 390/465
Min. brake torque (parking brake)
[Nm] 42000
Options
1-speed Yes
2-speed Yes
Mechanical freewheeling Yes
