Hydraulic drives for augers and drills

Black Bruin’s radial piston hydraulic motors are engineered to deliver high torque and reliability in the most challenging drilling environments. From foundation construction to military engineering, our motors provide efficient, gearless solutions that meet the rigorous demands of various drilling applications.

Learn more about our solutions

Contact us

Power and precision for every drill

Black Bruin offers both rotating case and rotating shaft motors, available in a variety of displacements to suit diverse drilling requirements. Each one of the Black Bruin radial piston motors provides full torque at zero speed immediately upon start-up and are reliable sources of power for high lifetime cost-efficiency.

S-series

The S-series hydraulic direct drives are our response to the various needs in construction applications to produce continuous high power efficiently without gears. They now come with new options including displacements from 4400 ccm to 22500 ccm and direct mount valves.

View product

X-series

The X-series, with its patent-pending design, is engineered to enhance the performance of both new and existing machinery, especially in terms of durability, serviceability, and cost-effectiveness. The range currently available covers displacements from 1260 to 8800 cm3.

View product

BB-series

For construction equipment where compactness combined to high efficiency are the key factors, the Black Bruin motor design with rotating case may well be the most efficient choice, offering reliability and high uptime in these applications.

View product

CFA drills

Black Bruin motors have been successfully used in the CFA drills for almost 10 years. Continuous Flight Auger drilling (CFA), also known as auger cast piling, is a technique used in construction to create a concrete deep foundation. A continuous flight auger drill is used to excavate a hole and concrete is injected through a hollow shaft under pressure as the auger is extracted. Reinforcement is then inserted after the auger is removed. This creates a continuous pile without ever leaving an open hole.

Auger and screw pile drives

Black Bruin motors are being used as drive units for augers and screw piles. No matter if you are digging a hole or screwing a foundation pile in, Black Bruin direct drive offers quiet efficiency with strong bearing set-up. With a direct drive without gearbox, such as the Black Bruin, there is no need for gear oil changes. Motor case oil is continuously being exchanged through motor’s case drain line.

The ultimate direct drive solution

The drilling applications with Black Bruin motors can enjoy many advantages.

High torque output

Black Bruin’s hydraulic drives deliver exceptional torque efficiency, ensuring effective penetration in diverse soil conditions.

Durability

Black Bruin motors are designed to perform reliably under continuous use, even in extreme terrains and harsh climates.

Robust construction

With Black Bruin bearing desing, the motor withstands high dynamic axial loading.

Gallery

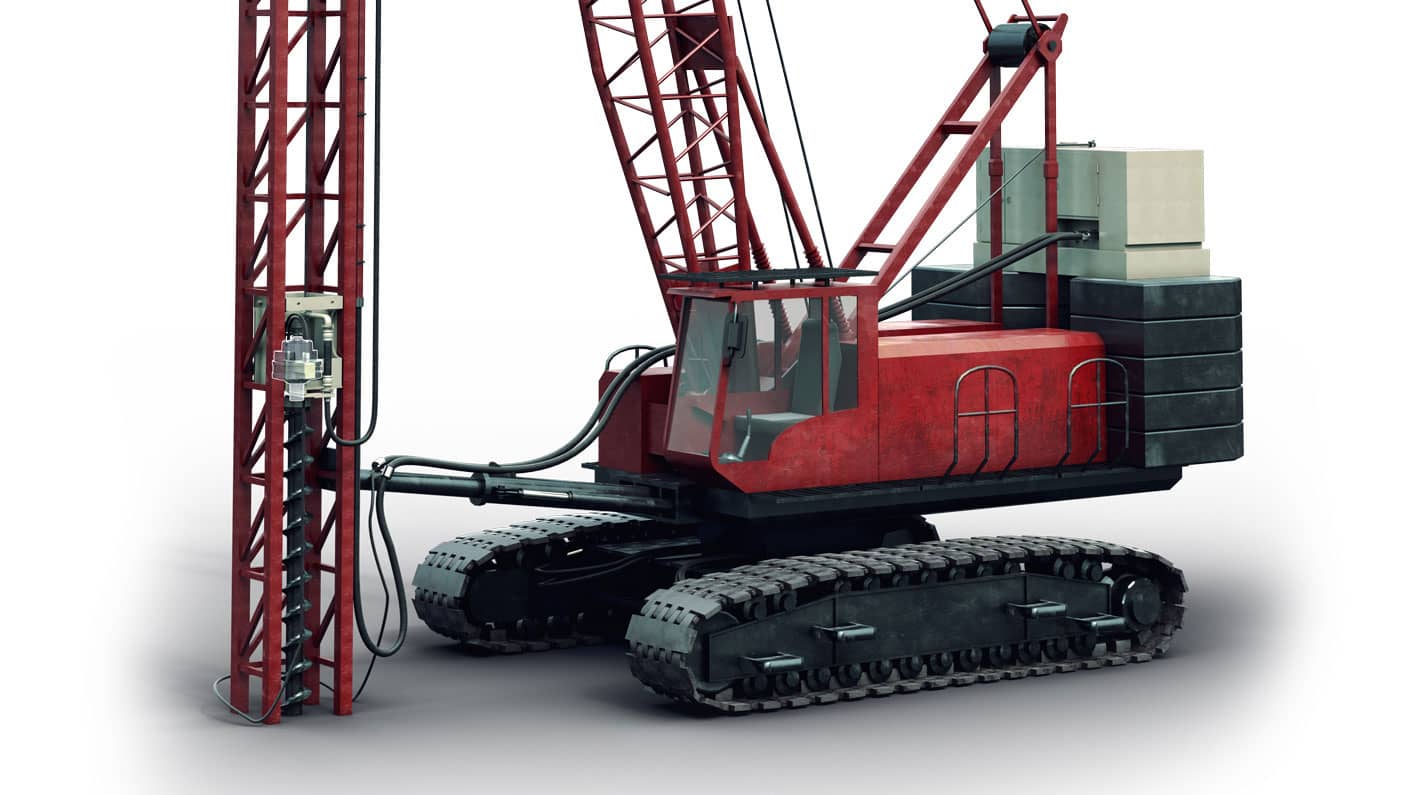

With internal diameter of 110 mm, a vast amount of material can be fed through S-Series Motor.

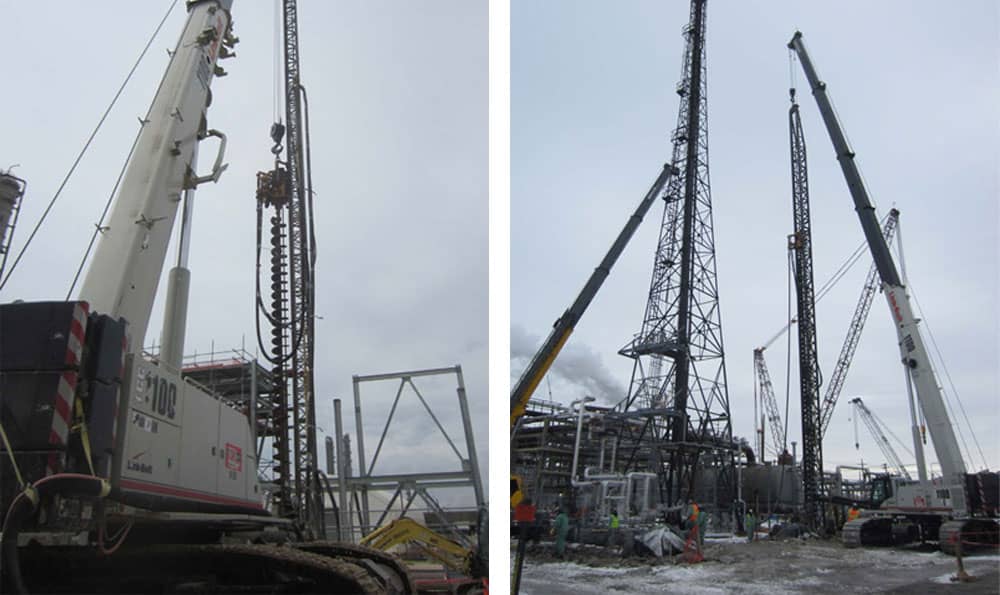

AH Beck Foundation with APE Black Bruin Drills.

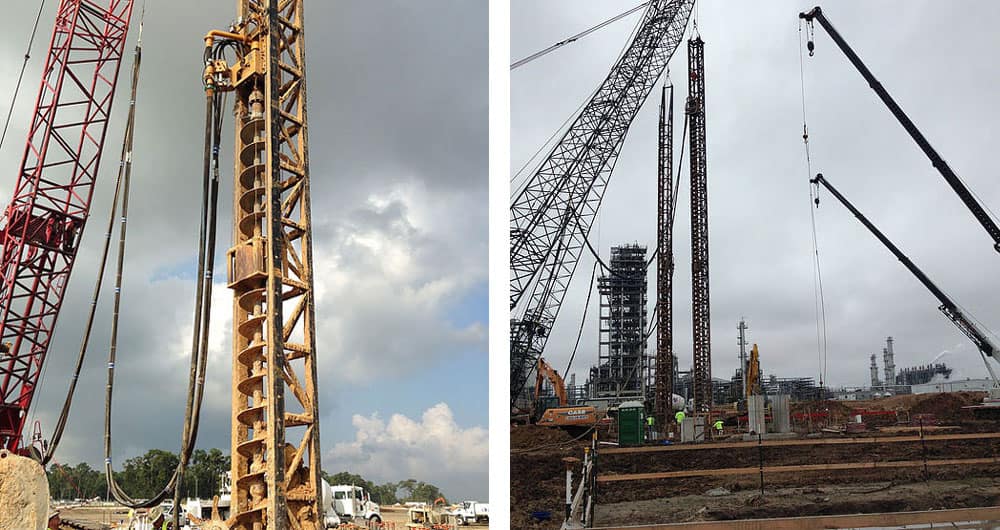

Richard Goettle, Inc.’s equipment on jobsite.

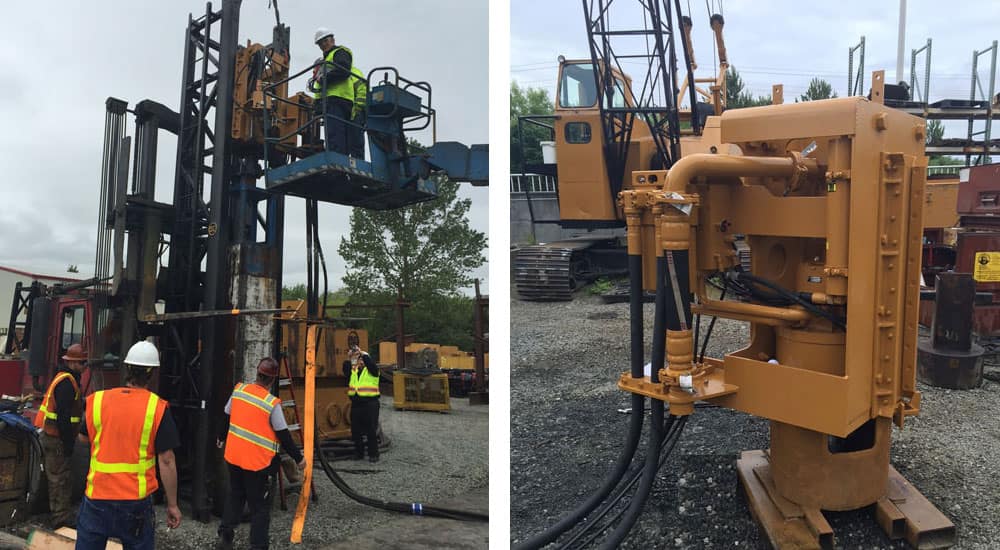

APE performed heavy field testing before launching the current production model of Black Bruin drill.

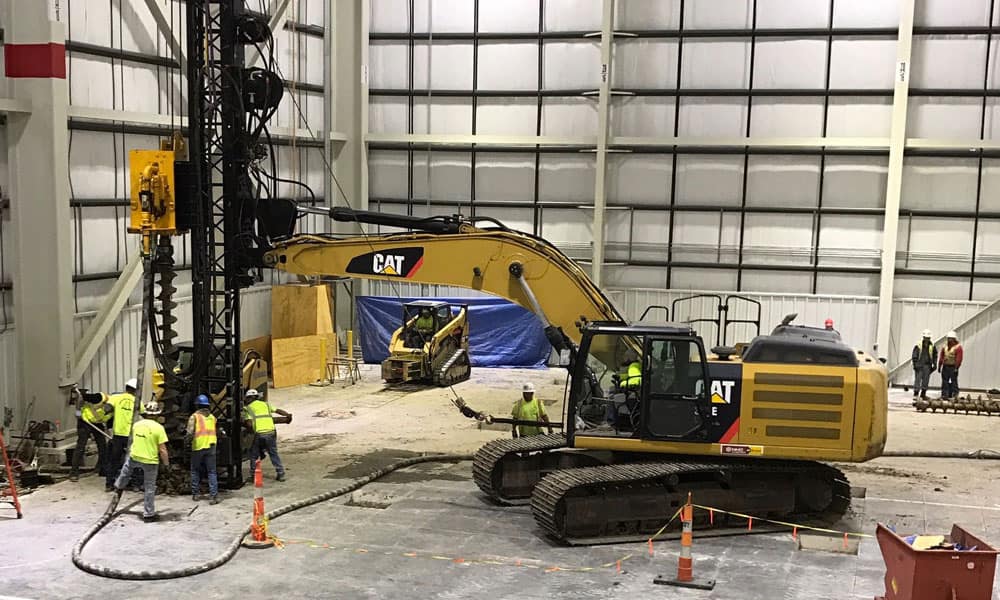

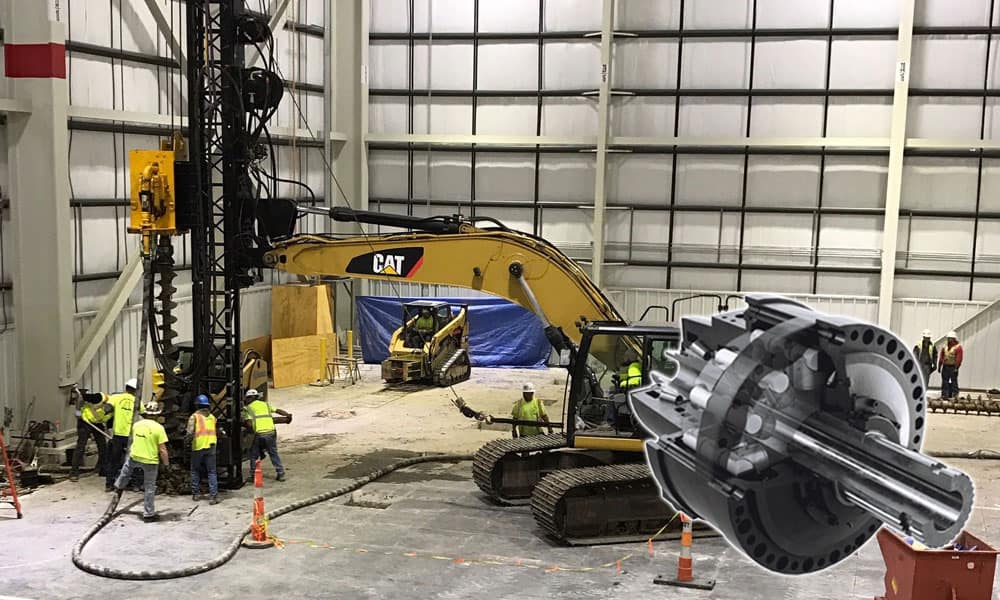

Longfellow Construction’s equipment on jobsite.

Proven on construction sites

In one of the final tests the new BB Drill made holes twice as fast as the older drill, mostly thanks to the ability to change the speed on the fly. I was instructed to try and break this drill in the testing stages. With the new manifold system this BB Drill is now bulletproof!
Chris Hoke, National Service Manager, American Piledriving Equipment
When we have multiple jobs going at the same time, our ground crews battle over who will get the BB Drills on their site. The Black Bruin powered drills outperform any of our other drills we have in our fleet, hands down!
Joe Gruber, Goettle
We have purchased several of the APE BB Drills in the past few years. These drills have met our every need and expectation. We have had zero recordable downtime instances since we purchased these units.
August Beck, AH Beck Foundation
We love our BB Drills so much that we name them. The crews that use them ask for them by name. We use our drills in multiple applications and they get the job done.
Daniel Lane, Longfellow Construction

References

Black Bruin hydraulic motor powers APE foundation drills

APE decided to try a new product for their Drill Program to keep moving forward with technology. As a result, APE leads the foundation equipment race in the North America with more powerful line of Black Bruin Top Drive Augers.

Upgrading existing equipment or planning a new installation?

Experience the difference that high-performance hydraulic drives can make in your drilling applications. Simply contact our customer service – it’s as direct as the power our motors provide.
